MSA-3004 (Preliminary Design)

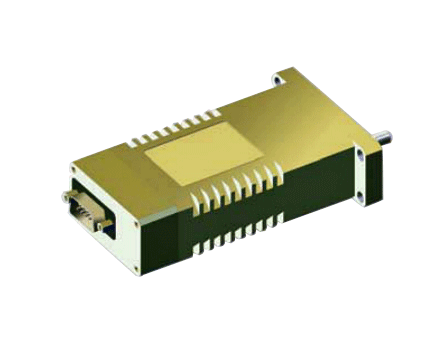

Small Size Servo Actuator for UAV
The MSA-3004 small size servo actuator is a high quality product, optimized for UAV requirements such as temperature range -54 C +71 C, EMI RFI shielding and high reliability. The MSA-3004 is a 28 V DC based actuator with brushless DC motor, high efficiency gearbox and electronic control system. It has a digital I/O commmunication version where the commands, position feedback and status are transmitted in digital CAN protocol. It has an input-output 9 pin connector interface (see table below) with analog voltage I/O pins proportional to axial angle. The MSA-3004 conforms to MIL-STD 461, MIL-STD 704 and MIL-STD 454.
Specifications
Pin Assignment
